ESP32-C3(Arduino) + Android App(Flutter) ⇒ Bluetooth 연동 #1

ESP32-C3 와 Android 앱 사이 Bluetooth 기반 MOSFET 으로 DC 전원을 제어합니다.

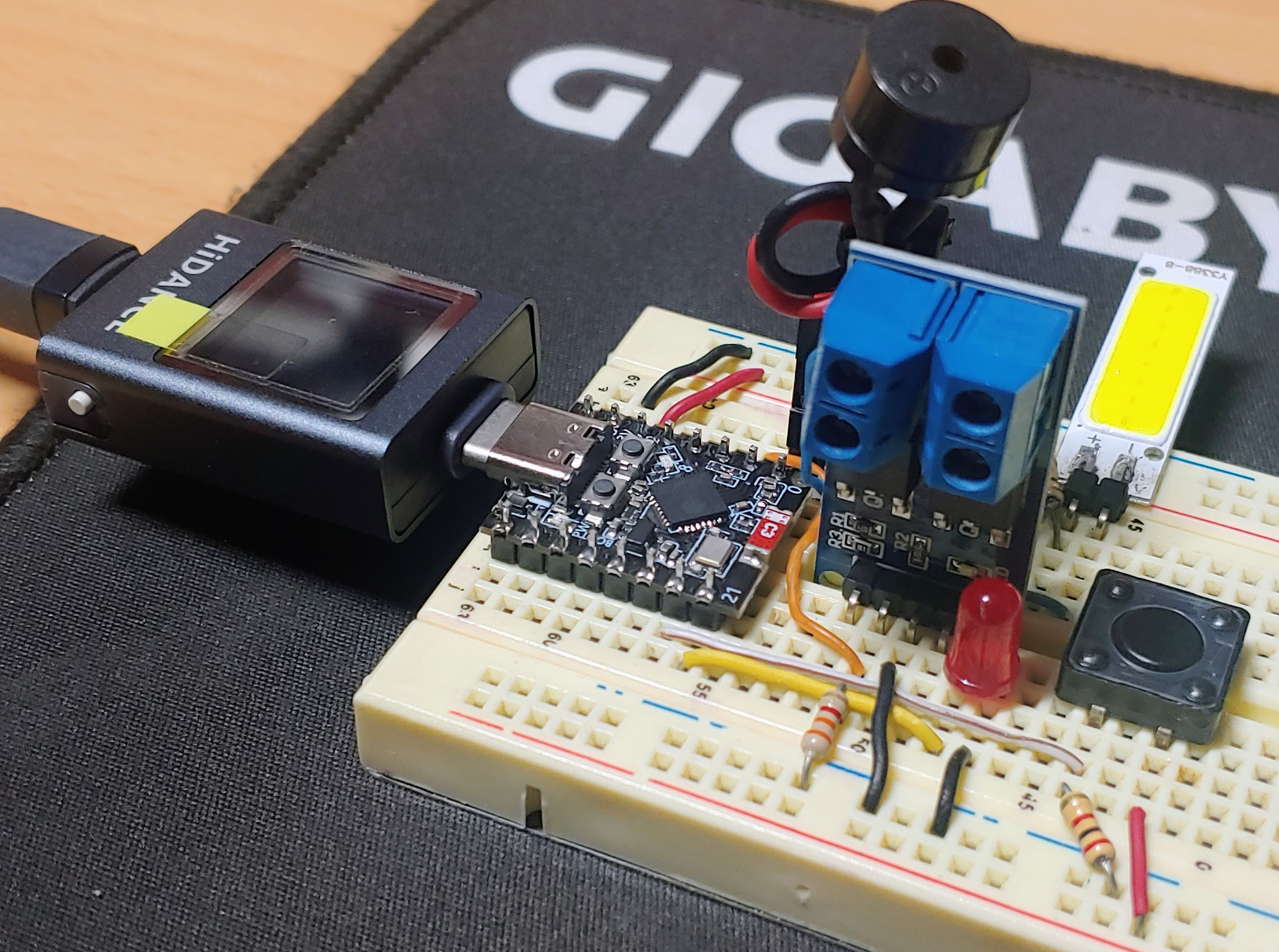

아래 사진 속 부하는 COB(Chip On Board) LED 입니다.



- 수동 ON/OFF 제어

- Bluetooth 장치 검색 / 등록 / 삭제

- 장치 원격 ON/OFF 제어

- 수동 ON/OFF 상태 Android 앱 동기화

- Bluetooth 온라인 LED (점멸: 연결 중, ON: 연결됨)

- 알림 부저음





* Flutter Dart 소스 코드

import 'dart:async';
import 'dart:convert';
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
import 'package:flutter_blue_plus/flutter_blue_plus.dart' as fb;
import 'package:permission_handler/permission_handler.dart';
import 'package:flutter_localizations/flutter_localizations.dart';
import 'dart:io';

// 장치 정보 클래스
class RegisteredDevice {
  final String name;
  final fb.BluetoothDevice device;
  bool isConnected;
  bool isOn;

  fb.BluetoothCharacteristic? targetCharacteristic;
  fb.BluetoothCharacteristic? receiveCharacteristic;
  String? lastReceivedMessage;
  StreamSubscription<List<int>>? messageSubscription;

  RegisteredDevice({
    required this.name,
    required this.device,
    this.isConnected = false,
    this.isOn = false,
    this.targetCharacteristic,
    this.receiveCharacteristic,
    this.lastReceivedMessage,
    this.messageSubscription,
  });

  // 장치 정보 JSON 직렬화
  Map<String, dynamic> toJson() => {
    'name': name,
    'remoteId': device.remoteId.str,
    'isOn': isOn,
  };

  // JSON 데이터 장치 정보 역직렬화 및 객체 생성
  factory RegisteredDevice.fromJson(Map<String, dynamic> json) {
    return RegisteredDevice(
      name: json['name'] as String,
      device: fb.BluetoothDevice.fromId(json['remoteId'] as String),
      isConnected: false,
      isOn: json['isOn'] as bool,
    );
  }
}

class DeviceStorage {
  static const String _fileName = 'registered_devices.json';

  static Future<String> get _localPath async {
    try {
      return './'; // 임시 경로
    } catch (e) {
      print("Error getting local path: $e");
      return '';
    }
  }

  static Future<File> get _localFile async {
    final path = await _localPath;
    return File('$path$_fileName');
  }

  // 장치 목록 저장
  static Future<void> saveDevices(List<RegisteredDevice> devices) async {
    try {
      final file = await _localFile;
      final jsonList = devices.map((d) => d.toJson()).toList();
      final jsonString = json.encode(jsonList);
      await file.writeAsString(jsonString);
      print("Devices saved successfully.");
    } catch (e) {
      print("Error saving devices: $e");
    }
  }

  // 장치 목록 로드
  static Future<List<RegisteredDevice>> loadDevices() async {
    try {
      final file = await _localFile;
      if (!await file.exists()) {
        return [];
      }
      final jsonString = await file.readAsString();
      final jsonList = json.decode(jsonString) as List;
      print("Devices loaded successfully.");
      return jsonList
          .map(
            (json) => RegisteredDevice.fromJson(json as Map<String, dynamic>),
          )
          .toList();
    } catch (e) {
      print("Error loading devices: $e");
      return [];
    }
  }
}

Future<void> main() async {
  FlutterError.onError = (FlutterErrorDetails details) {
    FlutterError.dumpErrorToConsole(details);
  };
  WidgetsFlutterBinding.ensureInitialized();
  SystemChrome.setEnabledSystemUIMode(
    SystemUiMode.manual,
    overlays: SystemUiOverlay.values,
  );
  runApp(const BLEApp());
}

class BLEApp extends StatefulWidget {
  const BLEApp({super.key});
  @override
  State<BLEApp> createState() => _BLEAppState();
}

class _BLEAppState extends State<BLEApp> {
  int? _expandedIndex;
  bool _isLoading = true;

  final List<RegisteredDevice> _registeredDevices = [];
  final targetServiceUuid = fb.Guid("12345678-1234-1234-1234-123456789abc");
  // Write (송신)
  final sendCharacteristicUuid = fb.Guid(
    "abcd1234-1234-1234-1234-123456789abc",
  );
  // Notify (수신)
  final receiveCharacteristicUuid = fb.Guid(
    "efff5678-5678-5678-5678-56789abcdeff",
  );

  @override
  void initState() {
    super.initState();
    // 권한 확인
    _checkPermissions();
    // 앱 시작 시 장치 목록 로드
    _loadDevices();
    // UI 세로 모드 고정
    SystemChrome.setPreferredOrientations([
      DeviceOrientation.portraitUp,
      DeviceOrientation.portraitDown,
    ]);
  }

  Future<void> _loadDevices() async {
    final loadedDevices = await DeviceStorage.loadDevices();
    setState(() {
      _registeredDevices.addAll(loadedDevices);
      _isLoading = false;
    });
  }

  // 장치 목록 변경 시 저장 함수 호출
  void _saveDevices() {
    DeviceStorage.saveDevices(_registeredDevices);
  }

  @override
  void dispose() {
    for (var regDevice in _registeredDevices) {
      regDevice.messageSubscription?.cancel();
      regDevice.device.disconnect();
    }
    super.dispose();
  }

  void _showErrorPopup(String message) {
    if (mounted) {
      ScaffoldMessenger.of(context).showSnackBar(
        SnackBar(
          content: Text(
            message,
            style: const TextStyle(
              color: Colors.white,
              fontWeight: FontWeight.bold,
            ),
          ),
          backgroundColor: Colors.red[700],
          duration: const Duration(seconds: 4),
          behavior: SnackBarBehavior.floating,
          shape: RoundedRectangleBorder(
            borderRadius: BorderRadius.circular(10),
          ),
          margin: const EdgeInsets.all(10),
        ),
      );
    }
  }

  void _removeDevice(RegisteredDevice deviceToRemove) async {
    deviceToRemove.messageSubscription?.cancel();
    try {
      if (deviceToRemove.isConnected ||
          await deviceToRemove.device.isConnected) {
        await deviceToRemove.device.disconnect();
      }
    } catch (e) {
      print('Error disconnecting device before removal: $e');
    }

    setState(() {
      _registeredDevices.removeWhere(
        (device) => device.device.remoteId == deviceToRemove.device.remoteId,
      );
    });
    // 장치 제거 후 저장
    _saveDevices();
    print('Device removed: ${deviceToRemove.name}');
  }

  // 권한 및 위치 서비스 체크 로직 강화
  Future<void> _checkPermissions() async {
    // 앱 권한 요청 (위치 포함)
    final Map<Permission, PermissionStatus> statuses = await [
      Permission.bluetooth,
      Permission.bluetoothScan,
      Permission.bluetoothConnect,
      Permission.bluetoothAdvertise,
      Permission.location,
    ].request();

    // 2. 위치 권한 상태 확인 및 오류 알림
    final isLocationGranted = statuses[Permission.location]?.isGranted ?? false;

    if (!isLocationGranted) {
      _showErrorPopup("BLE 스캔을 위해 위치 권한(Location)이 필요합니다. 앱 설정을 확인해주세요.");
      // 권한이 없으면 다음 단계를 진행하지 않고 리턴
      return;
    }

    // 장치의 위치 서비스(GPS) 상태 확인
    ServiceStatus locationServiceStatus =
        await Permission.location.serviceStatus;
    bool isLocationOn = locationServiceStatus.isEnabled;

    if (!isLocationOn) {
      _showErrorPopup("BLE 기능을 사용하려면 기기 설정에서 '위치 서비스(GPS)'를 켜주세요.");
    }

    // Bluetooth 어댑터(블루투스 ON/OFF 스위치) 상태 확인
    if (await fb.FlutterBluePlus.isSupported) {
      final adapterState = await fb.FlutterBluePlus.adapterState.first;

      if (adapterState != fb.BluetoothAdapterState.on) {
        _showErrorPopup(
          "BLE 기능을 사용하려면 기기 설정에서 'Bluetooth'를 켜주세요. (현재 상태: ${adapterState.toString().split('.').last})",
        );
      }
    }
  }

  Future<void> _setupNotification(
    RegisteredDevice regDevice,
    fb.BluetoothCharacteristic characteristic,
  ) async {
    regDevice.messageSubscription?.cancel();
    regDevice.messageSubscription = null;
    regDevice.receiveCharacteristic = null;

    if (characteristic.properties.notify) {
      await characteristic.setNotifyValue(true);
      print('Notification set to true for ${regDevice.name}');

      regDevice.messageSubscription = characteristic.lastValueStream.listen(
        (value) {
          if (value.isNotEmpty) {
            final receivedData = utf8.decode(value);
            print('Received message from ${regDevice.name}: $receivedData');

            try {
              final jsonMap = json.decode(receivedData);

              if (jsonMap is Map<String, dynamic> &&
                  jsonMap['status'] == 'relay_update') {
                final relayState = jsonMap['payload']['relay'];

                if (relayState == 'on' || relayState == 'off') {
                  final newSwitchState = (relayState == 'on');

                  if (regDevice.isOn != newSwitchState) {
                    if (mounted) {
                      setState(() {
                        regDevice.isOn = newSwitchState;
                        regDevice.lastReceivedMessage = receivedData;
                      });
                      _saveDevices();
                      print(
                        'Switch state updated by Notification for ${regDevice.name}: $relayState',
                      );
                    }
                  }
                }
              }
            } catch (e) {
              print('Error parsing received JSON for ${regDevice.name}: $e');
            }
          }
        },
        onError: (e) {
          print('Error in message stream for ${regDevice.name}: $e');
        },
        onDone: () {
          print('Message stream closed for ${regDevice.name}');
          regDevice.messageSubscription = null;
        },
      );

      regDevice.receiveCharacteristic = characteristic;
    } else {
      print(
        'Characteristic ${characteristic.uuid} does not support Notification.',
      );
    }
  }

  Future<void> _discoverAndSetupServices(RegisteredDevice regDevice) async {
    List<fb.BluetoothService> services = await regDevice.device
        .discoverServices();

    var targetService = services.firstWhere(
      (s) => s.uuid == targetServiceUuid,
      orElse: () =>
          throw Exception("Target service UUID not found: $targetServiceUuid"),
    );

    regDevice.targetCharacteristic = targetService.characteristics.firstWhere(
      (c) => c.uuid == sendCharacteristicUuid,
      orElse: () => throw Exception(
        "Target send characteristic UUID not found: $sendCharacteristicUuid",
      ),
    );

    try {
      var receiveCharacteristic = targetService.characteristics.firstWhere(
        (c) => c.uuid == receiveCharacteristicUuid,
        orElse: () => throw Exception(
          "Target receive characteristic UUID not found: $receiveCharacteristicUuid",
        ),
      );
      await _setupNotification(regDevice, receiveCharacteristic);
    } catch (e) {
      print('Warning: Receive characteristic setup failed: $e');
    }
  }

  Future<void> _requestInitialState(RegisteredDevice regDevice) async {
    if (regDevice.targetCharacteristic != null &&
        regDevice.targetCharacteristic!.properties.write) {
      const statusRequestData = {"cmd": "status_request", "payload": {}};
      final jsonString = json.encode(statusRequestData);

      try {
        await regDevice.targetCharacteristic!.write(
          utf8.encode(jsonString),
          withoutResponse: false,
        );
        print('Initial status request sent to ${regDevice.name}: $jsonString');
      } catch (e) {
        print('Initial status request failed for ${regDevice.name}: $e');
        _showErrorPopup('${regDevice.name}: 초기 상태 요청 전송 실패.');
      }
    } else {
      print(
        'Error: Target characteristic not available for initial status request.',
      );
    }
  }

  Future<void> _registerAndSendData(
    String name,
    fb.BluetoothDevice device,
  ) async {
    final newRegDevice = RegisteredDevice(name: name, device: device);
    setState(() {
      if (!_registeredDevices.any(
        (d) => d.device.remoteId == device.remoteId,
      )) {
        _registeredDevices.add(newRegDevice);
      }
    });

    const wifiData = {
      "cmd": "init",
      "payload": {"ssid": "jih", "pwd": "1234"},
    };
    final jsonString = json.encode(wifiData);

    try {
      await device.connect(
        license: fb.License.free,
        autoConnect: false,
        timeout: const Duration(seconds: 10),
      );
      setState(() {
        newRegDevice.isConnected = true;
      });

      await _discoverAndSetupServices(newRegDevice);

      // Wi-Fi 설정 데이터 전송
      await newRegDevice.targetCharacteristic!.write(
        utf8.encode(jsonString),
        withoutResponse: false,
      );
      print('Wi-Fi config sent to ${newRegDevice.name}: $jsonString');

      // 등록 후 초기 상태 요청
      await _requestInitialState(newRegDevice);

      // 등록 성공 후 장치 목록 저장
      _saveDevices();
    } catch (e) {
      final errorMsg =
          '등록 및 연결 실패: ${newRegDevice.name} 장치에 연결하거나 데이터를 전송할 수 없습니다. (${e.toString().split(':')[0]})';
      print('Registration and Send Error for ${newRegDevice.name}: $e');

      _showErrorPopup(errorMsg);

      if (mounted) {
        setState(() {
          newRegDevice.isConnected = false;
        });
      }
    }
  }

  Future<void> _connect(RegisteredDevice regDevice) async {
    // 연결 해제 로직
    if (regDevice.isConnected) {
      regDevice.messageSubscription?.cancel();
      regDevice.messageSubscription = null;
      regDevice.receiveCharacteristic = null;

      try {
        await regDevice.device.disconnect();
      } catch (e) {
        print('Error disconnecting during reconnect: $e');
      }

      setState(() {
        regDevice.isConnected = false;
        regDevice.targetCharacteristic = null;
        regDevice.isOn = false;
      });
      return;
    }

    // 연결 시도 로직
    try {
      await regDevice.device.connect(
        license: fb.License.free,
        autoConnect: false,
        timeout: const Duration(seconds: 10),
      );
      setState(() {
        regDevice.isConnected = true;
      });

      // 서비스 발견 및 특성 찾기
      await _discoverAndSetupServices(regDevice);

      // 연결 후 초기 상태 요청
      await _requestInitialState(regDevice);
    } catch (e) {
      print('Connection Error for ${regDevice.name}: $e');

      _showErrorPopup('${regDevice.name} 연결 실패. GATT 캐시 정리 후 재시도 중...');

      // 연결 실패 시 GATT 캐시를 삭제하고 재연결을 시도합니다.
      try {
        print('Attempting to clear GATT cache for ${regDevice.name}...');
        await regDevice.device.clearGattCache();
        print('GATT cache cleared. Trying reconnect ONE MORE TIME...');

        // **재연결 시도** (최대 1회)
        await regDevice.device.connect(
          license: fb.License.free,
          autoConnect: false,
          timeout: const Duration(seconds: 10),
        );
        setState(() {
          regDevice.isConnected = true;
        });

        // 재연결 성공 후 서비스 다시 발견
        await _discoverAndSetupServices(regDevice);

        // 재연결 후 초기 상태 요청
        await _requestInitialState(regDevice);
      } catch (reconnectError) {
        final finalErrorMsg =
            '최종 연결 실패: ${regDevice.name} (${reconnectError.toString().split(':')[0]}). 장치 전원을 확인하세요.';
        print('Reconnection failed after GATT cache clear: $reconnectError');

        _showErrorPopup(finalErrorMsg);

        // 연결 실패 상태 UI 반영
        if (mounted) {
          setState(() {
            regDevice.isConnected = false;
            regDevice.isOn = false;
            regDevice.targetCharacteristic = null;
            regDevice.receiveCharacteristic = null;
          });
        }
      }
    }
  }

  void _toggleDeviceState(RegisteredDevice regDevice, bool value) async {
    // Switch가 즉시 움직이도록 UI 상태 먼저 업데이트
    if (mounted) {
      setState(() {
        regDevice.isOn = value;
      });
      // 상태 변경 시 저장
      _saveDevices();
    }

    if (regDevice.targetCharacteristic != null &&
        regDevice.targetCharacteristic!.properties.write) {
      final data = {
        "cmd": "control",
        "payload": {"relay": value ? "on" : "off"},
      };
      final jsonString = json.encode(data);

      try {
        // BLE 통신 시도
        await regDevice.targetCharacteristic!.write(
          utf8.encode(jsonString),
          withoutResponse: false,
        );
        print('Command sent to ${regDevice.name}: $jsonString');
      } catch (e) {
        print('Data Send Error for ${regDevice.name}: $e');
        // 통신 실패 시 UI 상태 롤백 및 오류 팝업
        if (mounted) {
          setState(() {
            regDevice.isOn = !value; // 상태 롤백
          });
          _saveDevices();
          _showErrorPopup('데이터 전송 실패: ${regDevice.name} 장치와의 연결을 확인하세요.');
        }
      }
    } else {
      print(
        'Error: Target characteristic not available for writing or not connected.',
      );
      // 통신 불가 시 UI 상태 롤백 및 오류 팝업
      if (mounted) {
        setState(() {
          regDevice.isOn = !value;
        });
        _saveDevices();
        _showErrorPopup('오류: 장치가 연결되지 않았거나 특성을 찾을 수 없습니다.');
      }
    }
  }

  void _showScanModal(BuildContext context) {
    showModalBottomSheet(
      context: context,
      isScrollControlled: true,
      builder: (BuildContext modalContext) {
        return const ScanDeviceModal();
      },
    ).then((result) {
      if (result != null && result is Map<String, dynamic>) {
        _registerAndSendData(
          result['name'] as String,
          result['device'] as fb.BluetoothDevice,
        );
      }
    });
  }

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
      debugShowCheckedModeBanner: false,
      title: '장치 관리자',
      localizationsDelegates: const [
        GlobalMaterialLocalizations.delegate,
        GlobalWidgetsLocalizations.delegate,
      ],
      supportedLocales: const [Locale('ko', 'KR')],
      home: Scaffold(
        appBar: AppBar(
          backgroundColor: Theme.of(context).primaryColor,
          leading: const Icon(Icons.settings, color: Colors.white),
          titleSpacing: 0,
          title: const Text('장치 관리자'),
          titleTextStyle: const TextStyle(color: Colors.white, fontSize: 20),
          actions: [
            Builder(
              builder: (innerContext) => IconButton(
                icon: const Icon(Icons.search, color: Colors.white),
                onPressed: () => _showScanModal(innerContext),
              ),
            ),
          ],
        ),
        body: _isLoading
            ? const Center(child: CircularProgressIndicator())
            : ListView.builder(
                itemCount: _registeredDevices.length,
                itemBuilder: (context, index) {
                  final regDevice = _registeredDevices[index];
                  return Column(
                    children: [
                      ListTile(
                        contentPadding: const EdgeInsets.only(
                          left: 16.0,
                          right: 0.0,
                        ),
                        title: Text(regDevice.name), // 등록된 이름
                        subtitle: Text(
                          '${regDevice.device.remoteId.toString()}${regDevice.isConnected ? ' (연결됨)' : ''}',
                          style: TextStyle(
                            color: regDevice.isConnected
                                ? Colors.green
                                : Colors.grey,
                          ),
                        ),
                        trailing: IconButton(
                          icon: Icon(
                            regDevice.isConnected ? Icons.link_off : Icons.link,
                            color: regDevice.isConnected
                                ? Colors.green
                                : Colors.grey,
                            size: 25,
                          ),
                          onPressed: () => _connect(regDevice),
                        ),
                        onTap: () {
                          setState(() {
                            _expandedIndex = _expandedIndex == index
                                ? null
                                : index;
                          });
                        },
                      ),
                      AnimatedSize(
                        duration: const Duration(milliseconds: 300),
                        curve: Curves.easeInOut,
                        child: index == _expandedIndex
                            ? Padding(
                                padding: const EdgeInsets.symmetric(
                                  horizontal: 16.0,
                                  vertical: 8.0,
                                ),
                                child: Row(
                                  mainAxisAlignment:
                                      MainAxisAlignment.spaceBetween,
                                  children: [
                                    IconButton(
                                      onPressed: () {
                                        _expandedIndex = null;
                                        _removeDevice(regDevice);
                                      },
                                      icon: const Icon(
                                        Icons.delete_forever,
                                        color: Colors.red,
                                        size: 30,
                                      ),
                                    ),
                                    Row(
                                      children: [
                                        const Text(
                                          '스위치',
                                          style: TextStyle(fontSize: 18),
                                        ),
                                        Switch(
                                          value: regDevice.isOn,
                                          padding: const EdgeInsets.fromLTRB(
                                            0,
                                            0,
                                            20,
                                            0,
                                          ),
                                          onChanged: (value) =>
                                              _toggleDeviceState(
                                                regDevice,
                                                value,
                                              ),
                                        ),
                                      ],
                                    ),
                                  ],
                                ),
                              )
                            : const SizedBox.shrink(),
                      ),
                      const Divider(height: 1),
                    ],
                  );
                },
              ),
      ),
    );
  }
}

// 목록 (장치 검색)을 위한 모달 팝업 위젯
class ScanDeviceModal extends StatefulWidget {
  const ScanDeviceModal({super.key});

  @override
  State<ScanDeviceModal> createState() => _ScanDeviceModalState();
}

class _ScanDeviceModalState extends State<ScanDeviceModal> {
  final Set<fb.BluetoothDevice> _scanResultsSet = {};
  fb.BluetoothDevice? _selectedDevice;
  final TextEditingController _nameController = TextEditingController();
  late StreamSubscription<List<fb.ScanResult>> _scanSubscription;

  @override
  void initState() {
    super.initState();
    _startScan();
  }

  @override
  void dispose() {
    _scanSubscription.cancel();
    if (fb.FlutterBluePlus.isScanningNow) {
      fb.FlutterBluePlus.stopScan();
    }
    _nameController.dispose();
    super.dispose();
  }

  Future<void> _startScan() async {
    if (await fb.FlutterBluePlus.adapterState.first !=
        fb.BluetoothAdapterState.on) {
      try {
        await fb.FlutterBluePlus.turnOn();
        await fb.FlutterBluePlus.adapterState.firstWhere(
          (s) => s == fb.BluetoothAdapterState.on,
        );
      } catch (e) {
        print('Failed to turn on Bluetooth: $e');
        if (mounted) {
          Navigator.of(context).pop();
        }
        return;
      }
    }
    _scanResultsSet.clear();
    setState(() {});

    if (fb.FlutterBluePlus.isScanningNow) {
      await fb.FlutterBluePlus.stopScan();
    }

    _scanSubscription = fb.FlutterBluePlus.scanResults.listen((results) {
      for (fb.ScanResult r in results) {
        final deviceName = r.device.platformName;
        if (deviceName.toLowerCase().startsWith('dev-')) {
          if (_scanResultsSet.add(r.device)) {
            setState(() {});
          }
        }
      }
    }, onError: (e) => print('Scan Error: $e'));

    await fb.FlutterBluePlus.startScan(timeout: const Duration(seconds: 5));
  }

  @override
  Widget build(BuildContext context) {
    final scannedDevicesList = _scanResultsSet.toList();
    final mediaQuery = MediaQuery.of(context);

    // 키보드가 나타날 때, 키보드의 높이(viewInsets.bottom)만큼 하단 패딩을 추가하여 모달 내용을 밀어 올립니다.
    return Padding(
      padding: EdgeInsets.only(bottom: mediaQuery.viewInsets.bottom),
      child: Container(
        height: mediaQuery.size.height * 0.7,
        padding: const EdgeInsets.all(16.0),
        child: Column(
          children: [
            const Text(
              '장치 검색',
              style: TextStyle(fontSize: 18, fontWeight: FontWeight.bold),
            ),
            const SizedBox(height: 10),
            StreamBuilder<bool>(
              stream: fb.FlutterBluePlus.isScanning,
              initialData: false,
              builder: (context, snapshot) {
                final isScanning = snapshot.data ?? false;
                return Row(
                  mainAxisAlignment: MainAxisAlignment.spaceBetween,
                  children: [
                    Text(isScanning ? '검색 중...' : '검색 완료'),
                    IconButton(
                      icon: Icon(isScanning ? Icons.stop : Icons.refresh),
                      onPressed: isScanning
                          ? fb.FlutterBluePlus.stopScan
                          : _startScan,
                    ),
                  ],
                );
              },
            ),
            Expanded(
              child: ListView.builder(
                itemCount: scannedDevicesList.length,
                itemBuilder: (context, index) {
                  final d = scannedDevicesList[index];
                  final isSelected = _selectedDevice == d;
                  return ListTile(
                    title: Text(
                      d.platformName.isNotEmpty
                          ? d.platformName
                          : '(알 수 없는 장치)',
                    ),
                    subtitle: Text(d.remoteId.toString()),
                    trailing: isSelected
                        ? const Icon(Icons.check_circle, color: Colors.green)
                        : null,
                    onTap: () {
                      setState(() {
                        _selectedDevice = d;
                        _nameController.text = d.platformName.isNotEmpty
                            ? d.platformName
                            : '새 장치';
                      });
                    },
                  );
                },
              ),
            ),
            if (_selectedDevice != null) ...[
              const Divider(),
              TextField(
                controller: _nameController,
                decoration: const InputDecoration(
                  labelText: '등록 이름',
                  border: OutlineInputBorder(),
                ),
              ),
              const SizedBox(height: 10),
              Row(
                mainAxisAlignment: MainAxisAlignment.end,
                children: [
                  TextButton(
                    onPressed: () {
                      Navigator.of(context).pop();
                    },
                    child: const Text('취소'),
                  ),
                  const SizedBox(width: 10),
                  ElevatedButton(
                    onPressed: _nameController.text.trim().isNotEmpty
                        ? () {
                            Navigator.of(context).pop({
                              'name': _nameController.text.trim(),
                              'device': _selectedDevice!,
                            });
                          }
                        : null,
                    child: const Text('등록'),
                  ),
                ],
              ),
            ],
          ],
        ),
      ),
    );
  }
}



* ESP32-C3 소스 코드 (Arduino IDE)

#include <BLEDevice.h>
#include <BLEServer.h>
#include <BLEUtils.h>
#include <BLE2902.h>
#include <ArduinoJson.h>

const int BUZZER_PIN = 0;
const int MOSFET_CONTROL_PIN = 1;
const int SWITCH_INPUT_PIN = 20;
const int STATUS_LED_PIN = 21;

bool ledState = LOW;
bool mosfetState = LOW;
bool pressButton = false;
unsigned long lastLedOnTime;
unsigned long pressStartTime;

// BLE UUID 정의 (Flutter 앱과 일치해야 함)
#define SERVICE_UUID       "12345678-1234-1234-1234-123456789abc"
#define WRITE_CHAR_UUID    "abcd1234-1234-1234-1234-123456789abc"
#define NOTIFY_CHAR_UUID   "efff5678-5678-5678-5678-56789abcdeff"

// BLE 전역 변수
BLEService *pService = nullptr;
BLEServer* pServer = nullptr;
BLEAdvertising *pAdvertising = nullptr;
BLECharacteristic* pWriteCharacteristic = nullptr;
BLECharacteristic* pNotifyCharacteristic = nullptr;
bool deviceRegistered = false;
unsigned long registerStartTime = 0;

// Wi-Fi 정보를 저장할 버퍼
char ssidBuffer[32];
char pwdBuffer[64];

const size_t JSON_DOC_SIZE = 256;

void buzzer(unsigned int frequency, unsigned long duration = 0) {
  tone(BUZZER_PIN, frequency, duration);
  if (duration > 0) {
    delay(duration);
    noTone(BUZZER_PIN);
  }
}

void sendMosfetStateNotification(bool state) {
  // 연결된 클라이언트가 없거나 특성이 설정되지 않았으면 전송하지 않음
  if (!pServer || pServer->getConnectedCount() == 0 || !pNotifyCharacteristic) {
    Serial.println("Notification skipped: No BLE client connected or characteristic unavailable.");
    return;
  }

  // JSON 문서 구성
  StaticJsonDocument<JSON_DOC_SIZE> doc;
  doc["status"] = "relay_update";
  doc["payload"]["relay"] = state ? "on" : "off";

  char jsonBuffer[JSON_DOC_SIZE];
  serializeJson(doc, jsonBuffer);

  // BLE 특성 값 설정 및 알림 전송
  pNotifyCharacteristic->setValue(jsonBuffer);
  pNotifyCharacteristic->notify();
  Serial.printf("Sent Notification: %s\n", jsonBuffer);
}

// BLE 연결/해제 이벤트를 처리하는 콜백 클래스
class MyServerCallbacks: public BLEServerCallbacks {
    void onConnect(BLEServer* pServer) {
        Serial.println("Client connected.");

        delay(100);
        sendMosfetStateNotification(mosfetState);
        Serial.println("Sent initial relay state notification.");

        if (deviceRegistered && registerStartTime > 0) {
          // 등록 성공 시 타임아웃 로직 중지
          registerStartTime = 0;
          ledState = HIGH;
          digitalWrite(STATUS_LED_PIN, ledState);
        }
    }

    void onDisconnect(BLEServer* pServer) {
        Serial.println("Client disconnected. Starting advertising again...");
        // 클라이언트가 연결을 해제하면, 장치는 다시 광고를 시작해야 합니다.
        if (deviceRegistered) {
            ledState = LOW;
            digitalWrite(STATUS_LED_PIN, ledState);
            // 등록이 완료된 상태라면, 자동으로 광고를 재시작합니다.
            pAdvertising->start();
            Serial.println("Advertising resumed.");
        } else {
            // 등록 모드였다면, loop()의 타임아웃 로직이 광고 중지를 처리할 수 있도록 둡니다.
            if (registerStartTime > 0) {
                pAdvertising->start();
                Serial.println("Advertising resumed in registration mode.");
            }
        }
    }
};

class BLECallbacks: public BLECharacteristicCallbacks {
  void onWrite(BLECharacteristic *pChar) {
    String rxValue = String(pChar->getValue().c_str());

    Serial.printf("Received Data(%d): %s\n", rxValue.length(), rxValue.c_str());

    if (rxValue.length() == 0) {
      return;
    }

    // JSON 문서 생성 및 파싱
    StaticJsonDocument<JSON_DOC_SIZE> doc;
    DeserializationError error = deserializeJson(doc, rxValue);

    if (error) {
        Serial.printf("JSON parse failed: %s (Data: %s)\n", error.c_str(), rxValue.c_str());
        return;
    }

    if (doc.containsKey("cmd")) {
      const char* command = doc["cmd"];

      if (strcmp(command, "init") == 0) {
        if (!deviceRegistered) {
          const char* receivedSsid = doc["payload"]["ssid"];
          const char* receivedPwd = doc["payload"]["pwd"];

          strncpy(ssidBuffer, receivedSsid, sizeof(ssidBuffer) - 1);
          ssidBuffer[sizeof(ssidBuffer) - 1] = '\0';
          strncpy(pwdBuffer, receivedPwd, sizeof(pwdBuffer) - 1);
          pwdBuffer[sizeof(pwdBuffer) - 1] = '\0';

          deviceRegistered = true;
          registerStartTime = 0; // 등록 성공 시 타임아웃 로직 중지
          ledState = HIGH;
          digitalWrite(STATUS_LED_PIN, ledState);

          // 등록 성공 시 광고 중지 (앱이 연결을 끊지 않은 경우를 대비)
          if (pAdvertising->isAdvertising()) {
              pAdvertising->stop();
              Serial.println("Advertising stopped after successful registration.");
          }

          Serial.println("Registration successful");
        }
      } else if (strcmp(command, "control") == 0) {
        const char* relay = doc["payload"]["relay"];
        if (strcmp(relay, "on") == 0) {
          mosfetState = HIGH;
        } else if (strcmp(relay, "off") == 0) {
          mosfetState = LOW;
        }
        digitalWrite(MOSFET_CONTROL_PIN, mosfetState);
        Serial.printf("Relay %s (BLE controlled)\n", mosfetState == HIGH ? "ON" : "OFF");
        buzzer(1000, 100);

        // 상태 변경 알림 전송 (앱이 명령을 보냈으므로 확인용)
        sendMosfetStateNotification(mosfetState);

      } else if (strcmp(command, "status_request") == 0) {
        // 릴레이 상태 요청 명령 수신 시, 현재 상태를 Notification으로 전송
        Serial.println("Status request received. Sending current state.");
        sendMosfetStateNotification(mosfetState);
      }
    }
  }
};

void setup() {
  Serial.begin(9600);

  // 핀 모드 설정
  pinMode(BUZZER_PIN, OUTPUT);
  pinMode(MOSFET_CONTROL_PIN, OUTPUT);
  pinMode(SWITCH_INPUT_PIN, INPUT_PULLDOWN);
  pinMode(STATUS_LED_PIN, OUTPUT);

  // MOSFET OFF 초기 설정
  digitalWrite(MOSFET_CONTROL_PIN, mosfetState);

  // BLE 초기화
  BLEDevice::init("dev-ESP32C3");
  pServer = BLEDevice::createServer();

  // 서버에 연결/해제 콜백 등록
  pServer->setCallbacks(new MyServerCallbacks());

  pService = pServer->createService(SERVICE_UUID);

  // 1. Write/Read/Write_NR 특성 설정 (명령 수신용)
  pWriteCharacteristic = pService->createCharacteristic(
    WRITE_CHAR_UUID,
    BLECharacteristic::PROPERTY_READ |
    BLECharacteristic::PROPERTY_WRITE |
    BLECharacteristic::PROPERTY_WRITE_NR
  );
  pWriteCharacteristic->setCallbacks(new BLECallbacks());
  pWriteCharacteristic->setValue("Device READY");

  // Notify 특성 설정 (상태 전송용)
  pNotifyCharacteristic = pService->createCharacteristic(
    NOTIFY_CHAR_UUID,
    BLECharacteristic::PROPERTY_NOTIFY
  );
  // 클라이언트가 알림을 구독할 수 있도록 DESCRIPTOR 추가
  pNotifyCharacteristic->addDescriptor(new BLE2902());
  pNotifyCharacteristic->setValue("Status initialized");

  pAdvertising = BLEDevice::getAdvertising();
  pAdvertising->addServiceUUID(pService->getUUID());

  // 초기 부팅 완료 알림 LED
  digitalWrite(STATUS_LED_PIN, HIGH);
  delay(100);
  digitalWrite(STATUS_LED_PIN, LOW);

  // 장치가 등록된 상태가 아니므로, 광고는 loop()의 스위치 로직을 따릅니다.
  Serial.println("Device awaiting registration via button press.");
}

void loop() {
  // 등록 완료. 연결된 클라이언트가 없을 때만 광고가 실행되도록 관리.
  if (deviceRegistered && pServer->getConnectedCount() == 0 && !pAdvertising->isAdvertising()) {
      pAdvertising->start();
      Serial.println("Device registered and ready to connect (Advertising).");
      // 등록 후 LED ON
      digitalWrite(STATUS_LED_PIN, HIGH);
  }

  // 등록 모드 (버튼 1초 이상 누름) 시 LED 점멸 및 타임아웃 처리
  if (registerStartTime > 0) {
    if (millis() - registerStartTime > 60000) {
      ledState = LOW;
      digitalWrite(STATUS_LED_PIN, ledState);
      registerStartTime = 0;
      pressButton = false;

      if (!deviceRegistered) {
        // 타임아웃 시 광고 중지
        pAdvertising->stop();
        pService->stop();
      }

      Serial.println("Registration timeout");
    } else if (lastLedOnTime == 0 || millis() - lastLedOnTime > 100) {
      ledState = !ledState;
      digitalWrite(STATUS_LED_PIN, ledState);
      lastLedOnTime = millis();
    }
  }

  // 스위치 입력 처리
  if (!pressButton && digitalRead(SWITCH_INPUT_PIN) == HIGH) {
    pressButton = true;
    pressStartTime = millis();

    // 1초 이상 Down 확인 (등록 모드 진입)
    while (digitalRead(SWITCH_INPUT_PIN) == HIGH && registerStartTime == 0) {
      if (millis() - pressStartTime >= 1000) {
        pService->start();
        // 등록 모드 진입 시 광고 시작
        if (!pAdvertising->isAdvertising()) {
            pAdvertising->start();
        }

        registerStartTime = millis();
        lastLedOnTime = 0;

        Serial.println("Start registration");
      }
    }
  } else if (pressButton && digitalRead(SWITCH_INPUT_PIN) == LOW) {
    pressButton = false;

    // 1초 미만 누름 (일반 토글)
    if (millis() - pressStartTime < 1000) {
      // MOSFET ON/OFF 토글
      mosfetState = !mosfetState;
      digitalWrite(MOSFET_CONTROL_PIN, mosfetState);
      Serial.printf("Relay %s (Manual controlled)\n", mosfetState == HIGH ? "on" : "off");
      buzzer(1000, 100);

      // MOSFET 상태 변경 전송 (수동 조작 시 앱 동기화)
      sendMosfetStateNotification(mosfetState);
    }
  }
}
